SGP laminated glass has become a benchmark in modern architecture, not only for its outstanding safety and impact resistance but also for its sleek aesthetic appeal. From high-rise curtain walls to frameless balustrades, SGP laminated glass allows designers to push creative boundaries while maintaining structural integrity.
However, the performance of SGP laminated glass depends significantly on how it’s installed. Proper installation ensures clarity, safety, and long-term durability. Improper handling or support can compromise the interlayer adhesion, cause stress cracks, or result in delamination.
This article outlines a comprehensive installation guide tailored for SGP laminated glass panels, whether used for facades, interior partitions, or frameless barriers.
What Is SGP Laminated Glass?
SGP laminated glass consists of two or more layers of glass bonded together with an ionoplast interlayer called SentryGlas® Plus (SGP). This interlayer:
- Offers 5x the tear resistance of PVB
- Is 100x stiffer
- Resists UV, moisture, and chemicals
- Retains integrity post-breakage
- Allows for open-edge installations
To understand its benefits:
🔗 5 Reasons SGP Laminated Glass Is Best for Safety and Clarity
Pre-Installation Checklist
1. Verify Panel Specifications
Ensure you have the correct:
- Dimensions and glass thickness
- Glass type (annealed, heat-strengthened, or tempered)
- Number of layers and interlayer configuration
- Edge treatments (polished, arrised, seamed)
2. Inspect Panels for Damage
Upon delivery, inspect each panel for:
- Chips, cracks, or warping
- Delamination or haze at the edges
- Inclusions or optical distortion
- Compliance with manufacturing standards
Tools and Materials Required
- Spirit level and plumb line
- Glazing blocks or setting blocks
- Mechanical glass lifters/suction cups
- Structural silicone sealant (neutral-cure)
- Gaskets or EPDM spacers
- Backer rods and weatherproof sealants
- Stainless steel fixings and brackets
- Personal protective equipment (PPE)
Step-by-Step SGP Laminated Glass Installation Process
1. Prepare the Frame or Support Structure
- Clean all support surfaces to remove dust or oil
- Confirm alignment and level using a laser or plumb line
- Ensure expansion joints are included in the structure
- Install backer rods or spacers where applicable
For frameless systems, install the base channels, point fittings, or spider arms with verified load calculations.
2. Install Setting Blocks
Use compatible setting blocks:
- Sized to 80–100mm in length
- Made of EPDM or neoprene
- Placed 1/4 from each edge for optimal weight distribution
- With 3–5mm clearance from the base
These blocks prevent direct glass-to-metal contact and absorb stress loads.

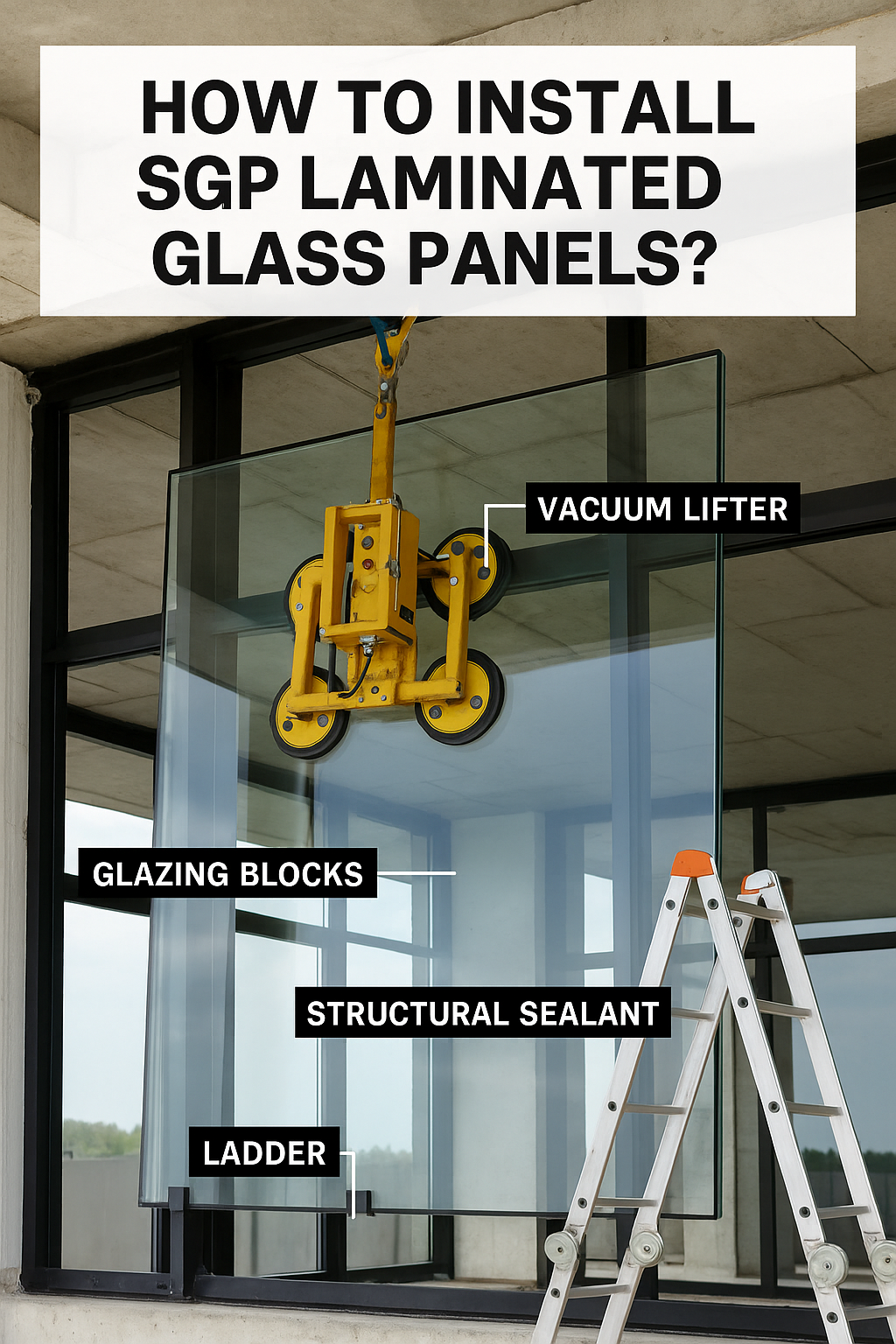

3. Position the Glass Panel
- Use suction lifters or cranes for larger panels
- Lower the glass vertically onto the setting blocks
- Align edges with the system’s control lines
- Maintain consistent edge spacing (10–15mm typical)
Do not force or wedge glass into the opening—this can stress the interlayer and cause long-term failure.
4. Apply Gaskets or Structural Sealants
Depending on your system (dry-glazed or wet-glazed):
- Install pressure gaskets (for dry systems)
- Apply structural silicone sealant between frame and glass (for wet systems)
- Use closed-cell backer rods to regulate sealant depth
- Always use neutral-cure silicone, as acidic types may react with SGP
Avoid trapping air or contaminants under the sealant. Cure time depends on ambient temperature and product type.
5. Install Mechanical Fixings (If Required)
In structural glazing:
- Use stainless steel bolts with grommets
- Tighten fittings to manufacturer torque specs
- Apply sealant caps for weatherproofing
- Use spacers to prevent over-tightening
Point-supported systems may use spider arms or clamps attached directly to the laminated panel.
6. Clean and Protect the Glass
Once panels are installed:
- Remove protective film only after final cleaning
- Use soft microfiber cloths and pH-neutral cleaner
- Avoid ammonia-based or abrasive materials
- Document panel layout and performance data for future reference
Common Installation Mistakes to Avoid
- Using acidic sealants that damage the interlayer
- Over-tightening mechanical supports
- Skipping edge protection in exposed settings
- Not allowing for thermal expansion
- Poor frame alignment causing torsional stress
SGP laminated glass is robust—but like all structural components, it requires precision handling.
Want to see how the glass is made before it arrives onsite?
🔗 How SGP Laminated Glass Is Manufactured?
Post-Installation SGP Laminated Glass Care
Regular Maintenance Tips
- Inspect edges every 6–12 months for moisture ingress
- Reapply sealant if cracks or shrinkage appear
- Clean glass quarterly in coastal or urban environments
- Lubricate mechanical fittings (if applicable)
Proper maintenance helps extend lifespan beyond 30–50 years, depending on environmental conditions.
Explore why SGP’s performance outlasts other laminated glass:
🔗 Why SGP Laminated Glass Handles Impact Better
Best Applications for SGP Panel Installations
- Frameless balconies and balustrades
- Point-fixed curtain walls
- Glass stairs, floors, and bridges
- Structural skylights
- Overhead canopies
- Seismic or hurricane zones
SGP laminated glass installations meet building code requirements for safety and post-breakage retention.
Conclusion
Installing SGP laminated glass panels is a precise process that requires thoughtful planning, proper tools, and meticulous technique. When installed correctly, this high-performance glass offers decades of clarity, structural reliability, and safety.
Whether you’re glazing a 40-story tower or a frameless glass balcony, following the right installation procedures is crucial to getting the most from this premium material.
